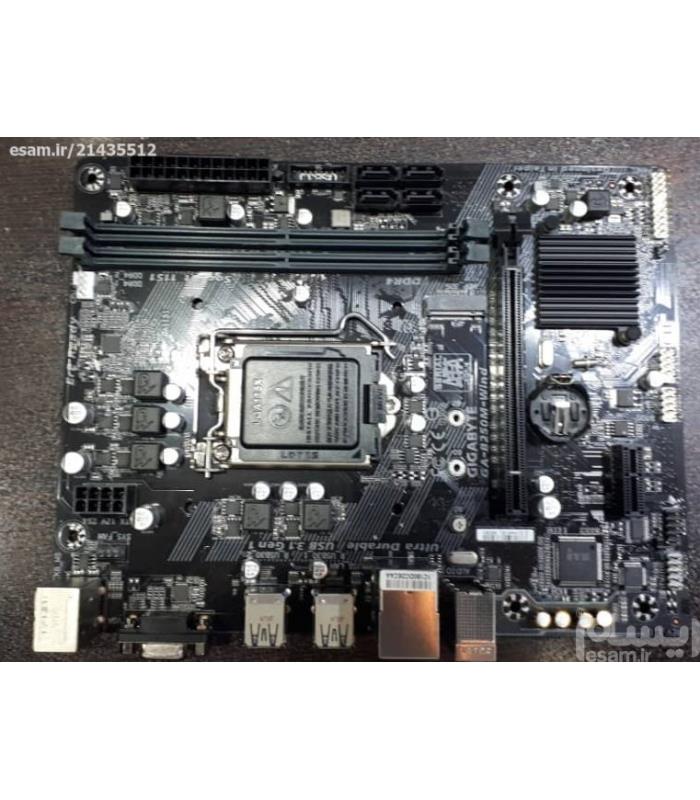

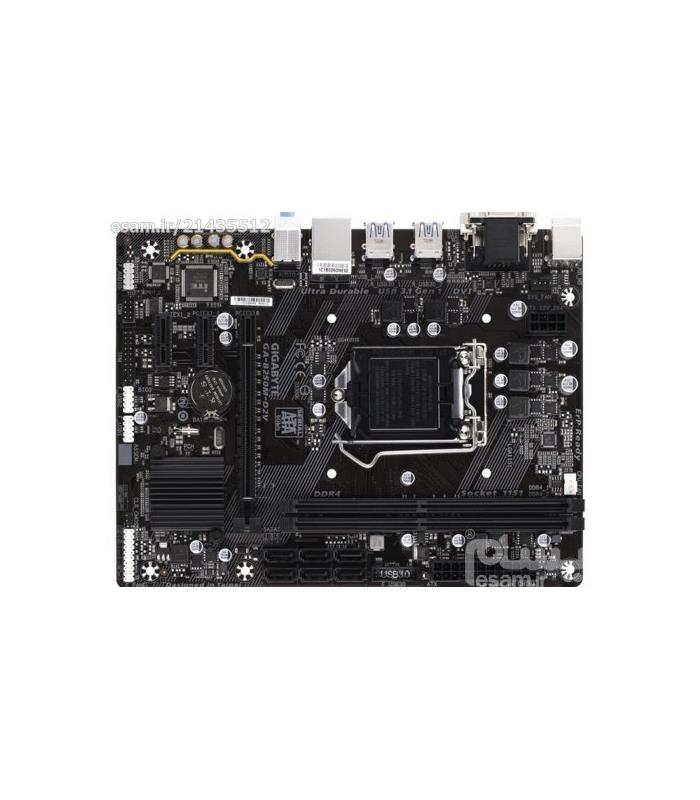

GIGABYTE GA-B250M-wind 1151 m.2 vga usb3 lan ps2

    CPU

        Support for 7th and 6th generation Intel® Core i7 processors/ Intel® Core i5 processors/Intel® Core i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package

        L3 cache varies with CPU

    (Please refer "CPU Support List" for more information.)

    Chipset

        Intel® B250 Express Chipset

    Memory

        2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

        * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

        Dual channel memory architecture

        Support for DDR4 2400* / 2133 MHz memory modules

        * To support 2400 MHz or XMP memory, you must install a 7th generation processor.

        Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

        Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

        Support for Extreme Memory Profile (XMP) memory modules

        * To support 2400 MHz or XMP memory, you must install a 7th generation processor.

    (Please refer "Memory Support List" for more information.)

    Onboard Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:

        1 x D-Sub port, supporting a maximum resolution of 1920x1200esam60 Hz

        1 x DVI-D port, supporting a maximum resolution of 1920x1200esam60 Hz

        * The DVI-D port does not support D-Sub connection by adapter.

    Maximum shared memory of 1 GB

    Audio

        Realtek® ALC887 codec

        High Definition Audio

        2/4/5.1/7.1-channel

        * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

        Support for S/PDIF Out

    LAN

        Realtek® GbE LAN chip (10/100/1000 Mbit)

    Expansion Slots

        1 x PCI Express x16 slot, running at x16

        2 x PCI Express x1 slots

        (All of the PCI Express slots conform to PCI Express 3.0 standard.)

    Storage Interface

    Chipset:

        6 x SATA 6Gb/s connectors

    USB

    Chipset:

        6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

        6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

    Internal I/O Connectors

        1 x 24-pin ATX main power connector

        1 x 8-pin ATX 12V power connector

        1 x CPU fan header

        1 x system fan header

        6 x SATA 6Gb/s connectors

        1 x front panel header

        1 x front panel audio header

        1 x S/PDIF Out header

        1 x USB 3.1 Gen 1 header

        2 x USB 2.0/1.1 headers

        1 x Trusted Platform Module (TPM) header

        1 x serial port header

        1 x Clear CMOS jumper

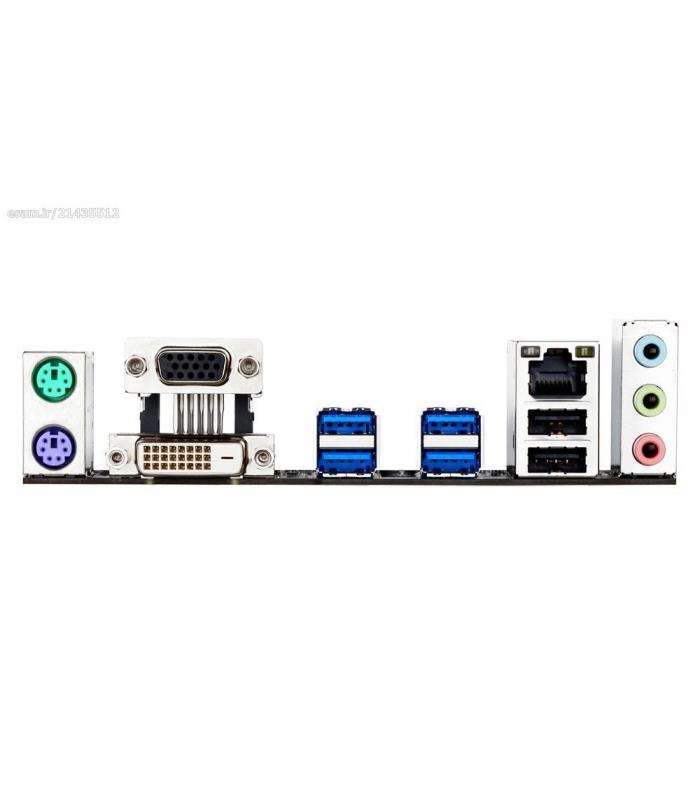

    Back Panel Connectors

        1 x PS/2 keyboard port

        1 x PS/2 mouse port

        1 x D-Sub port

        1 x DVI-D port

        4 x USB 3.1 Gen 1 ports

        2 x USB 2.0/1.1 ports

        1 x RJ-45 port

        3 x audio jacks (Line In, Line Out, Mic In)

    I/O Controller

        iTE® I/O Controller Chip

    H/W Monitoring

        Voltage detection

        Temperature detection

        Fan speed detection

        Overheating warning

        Fan fail warning

        Fan speed control

        * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

    BIOS

        1 x 64 Mbit flash

        Use of licensed AMI UEFI BIOS

        PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Unique Features

        Support for APP Center

        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

        3D OSD

        esamBIOS

        Ambient LED

        AutoGreen

        BIOS Setup

        Color Temperature

        Cloud Station

        EasyTune

        Fast Boot

        Game Boost

        ON/OFF Charge

        Platform Power Management

        Smart Backup

        Smart Keyboard

        Smart TimeLock

        System Information Viewer

        USB Blocker

        V-Tuner

        Support for 3TB+ Unlock

        Support for Q-Flash

        Support for Xpress Install

    Bundled Software

        Norton® Internet Security (OEM version)

        cFosSpeed

    Operating System

        Windows® 10 64-bit (for 7th Generation Intel® Processors)

        Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)

        * Please download the "Windows USB Installation Tool" from GIGABYTEs website and install it before installing Windows 7.

    Form Factor

        Micro ATX Form Factor 22.6cm x 17.4cm

    Remark

        Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors website or 3rd party website.

        Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.

* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.

* All trademarks and logos are the properties of their respective holders.

* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
