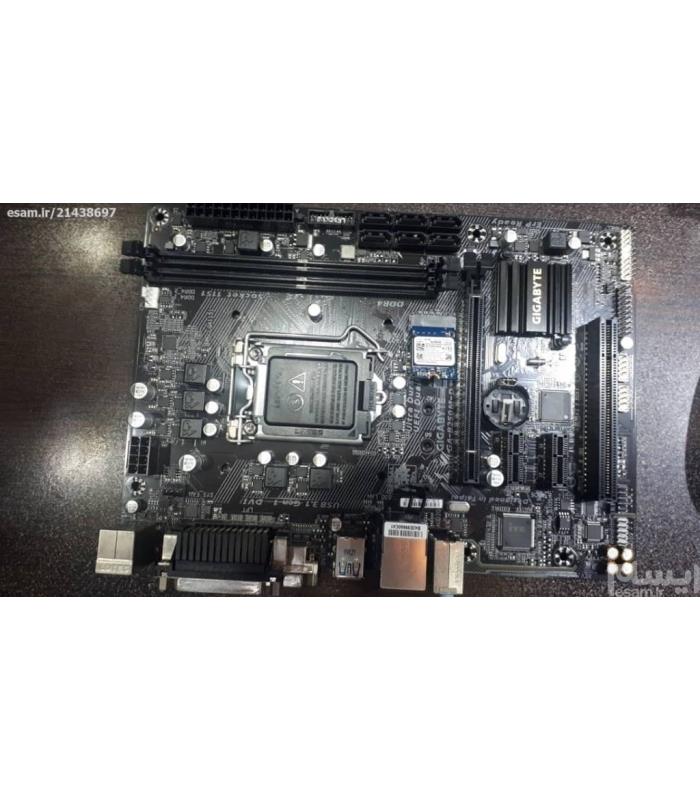

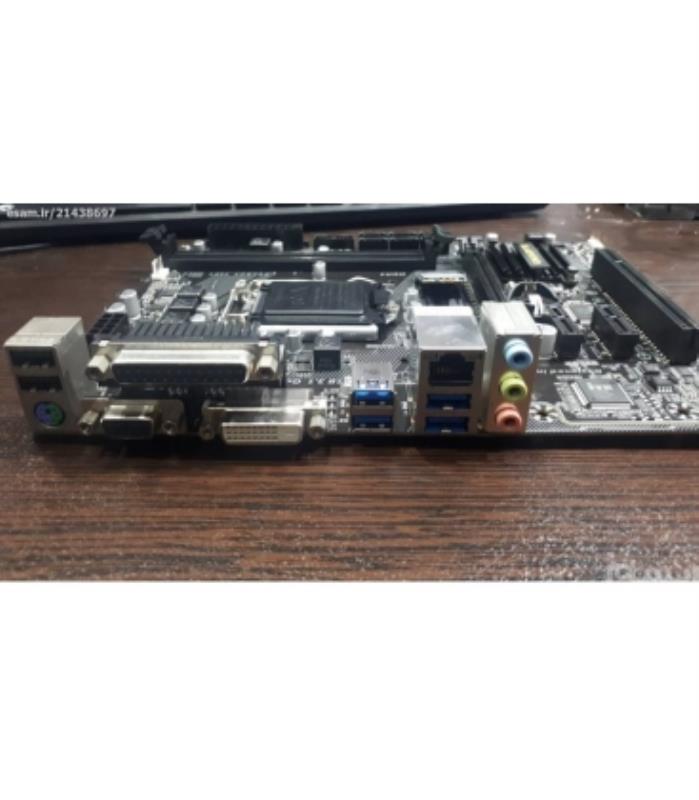

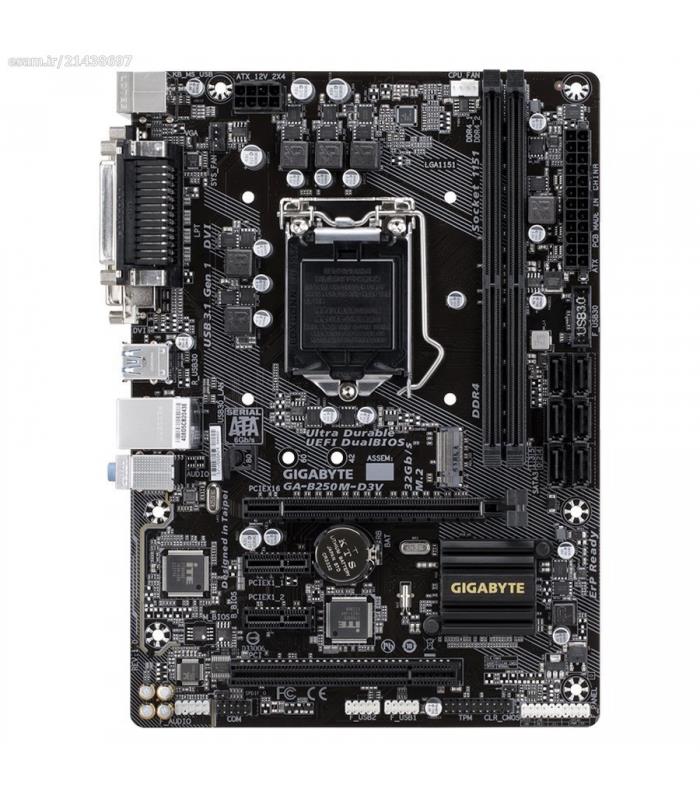

GIGABYTE GA-B250M-D3V

عصر جدید

۱۱۲ محصول

(۲)

تهران، تهران

فعالیت از ۱۴۰۰/۰۳/۳۰

محصولات درباره

دست دوم

دیجیتال و الکترونیک لپ تاپ و کامپیوتر قطعات و تجهیزات پردازنده

(۰)

هزینه ارسال: برعهده خریدار

۲,۷۵۰,۰۰۰ تومان

۱
۲
۳
۴
۵
۶
۷
۸
۹
۱۰
بیشتر...

توضیحات

نظرات (۰)

توضیحات تکمیلی محصول

GIGABYTE GA-B250M-D3V 1151 M.2VGA DVI PARALEL USB3 PS2 LAN

CPU

Support for 7th and 6th generation Intel® Core i7 processors/ Intel® Core i5 processors/Intel® Core i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package

L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

Intel® B250 Express Chipset

Memory

2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR4 2400* / 2133 MHz memory modules

* To support 2400 MHz or XMP memory, you must install a 7th generation processor.

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

* To support 2400 MHz or XMP memory, you must install a 7th generation processor.

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200esam60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920x1200esam60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

Maximum shared memory of 1 GB

Audio

Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

2 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

1 x PCI slot

Storage Interface

Chipset:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

6 x SATA 6Gb/s connectors

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

USB

Chipset:

6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x M.2 Socket 3 connector

6 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header

1 x serial port header

1 x Clear CMOS jumper

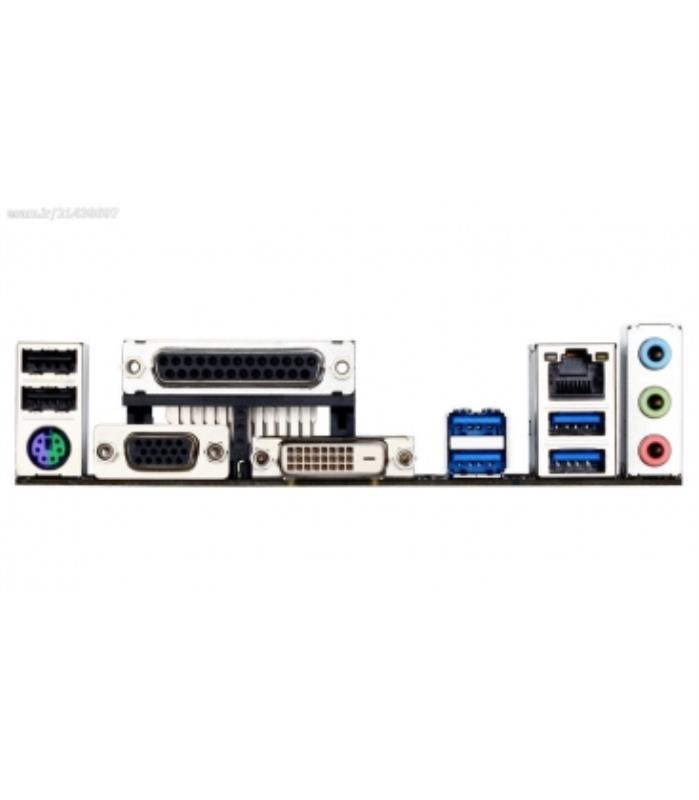

Back Panel Connectors

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x DVI-D port

1 x parallel port

4 x USB 3.1 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

2 x 64 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

3D OSD

esamBIOS

Ambient LED

AutoGreen

BIOS Setup

Color Temperature

Cloud Station

EasyTune

Fast Boot

Game Boost

ON/OFF Charge

Platform Power Management
