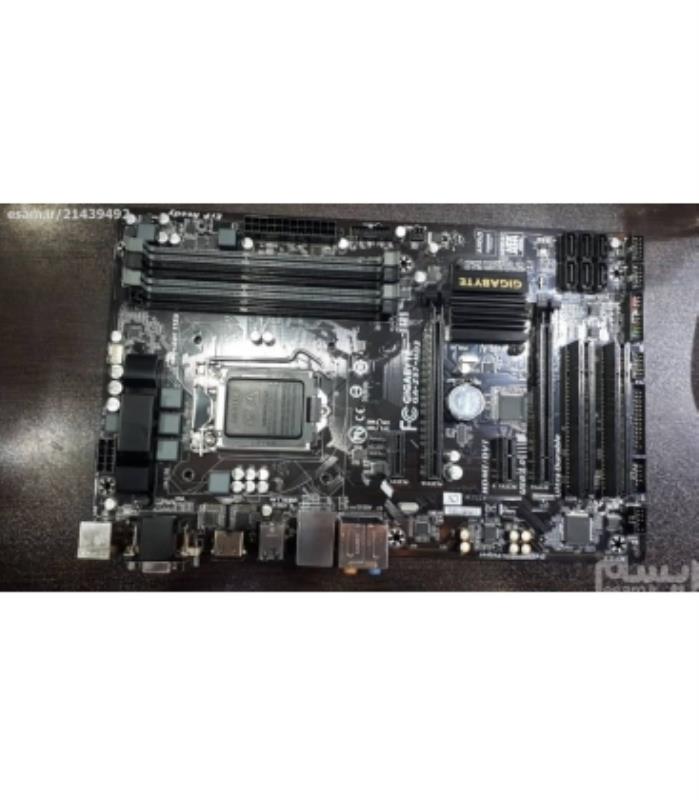

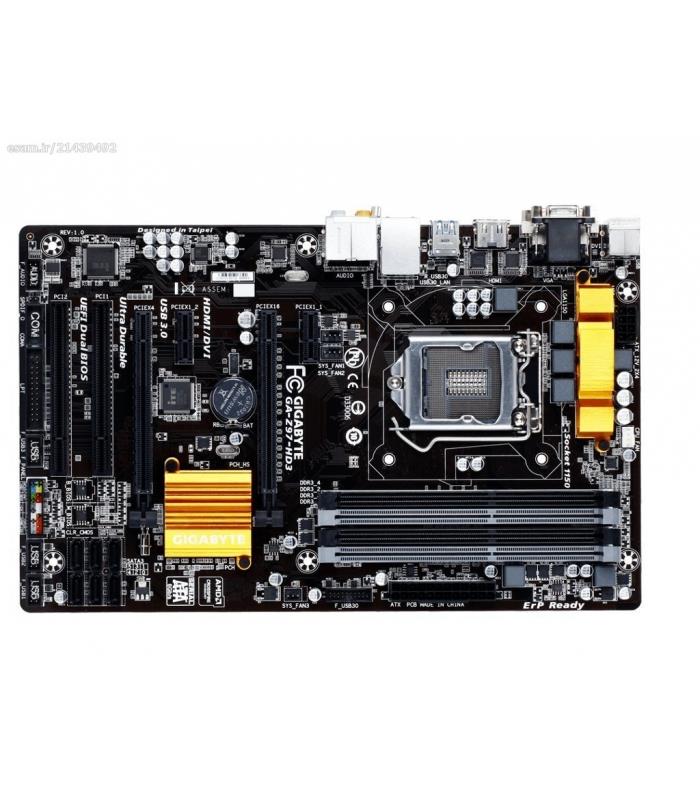

GIGABYTE GA-Z97-HD3 HDMI VGA DVI USB3 PS2 LAN

    CPU

        Support for Intel® Core i7 processors/Intel® Core i5 processors/ Intel® Core i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1150 package

        L3 cache varies with CPU

    (Please refer "CPU Support List" for more information.)

    Chipset

        Intel® Z97 Express Chipset

    Memory

        4 x DDR3 DIMM sockets supporting up to 32 GB of system memory

        * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

        Dual channel memory architecture

        Support for DDR3 3100(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules

        Support for non-ECC memory modules

        Support for Extreme Memory Profile (XMP) memory modules

    (Please refer "Memory Support List" for more information.)

    Onboard Graphics

    Integrated Graphics Processor - Intel® HD Graphics support:

        1 x D-Sub port, supporting a maximum resolution of 1920x1200esam60Hz

        1 x DVI-D port, supporting a maximum resolution of 1920x1200esam60Hz

        * The DVI-D port does not support D-Sub connection by adapter.

        1 x HDMI port, supporting a maximum resolution of 4096x2160esam24Hz or 2560x1600esam60Hz

        * Support for HDMI 1.4a version.

        Support for up to three displays at the same time

        Maximum shared memory of 512MB

    Audio

        Realtek® ALC887 codec

        High Definition Audio

        2/4/5.1/7.1-channel

        Support for S/PDIF Out

    LAN

        Realtek® GbE LAN chip (10/100/1000 Mbit)

    Expansion Slots

        1 x PCI Express x16 slot, running at x16 (PCIEX16)

        (The PCIEX16 slot conforms to PCI Express 3.0 standard.)

        * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

        1 x PCI Express x16 slot, running at x4 (PCIEX4)

        * The PCIEX4 slot shares band with the PCI Express x1 slots. The PCI Express x1 slots will become unavailable when a PCIe x4 expansion card is installed.

        * When installing a x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration (PCH) in BIOS Setup to x4.

        2 x PCI Express x1 slots

        (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

        2 x PCI slots

    Multi-Graphics Technology

        Support for 2-Way AMD CrossFire technology

    Storage Interface

    Chipset:

        6 x SATA 6Gb/s connectors

        Support for RAID 0, RAID 1, RAID 5, and RAID 10

    USB

    Chipset:

        6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB headers)

        8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)

    Internal I/O Connectors

        1 x 24-pin ATX main power connector

        1 x 8-pin ATX 12V power connector

        6 x SATA 6Gb/s connectors

        1 x CPU fan header

        3 x system fan headers

        1 x front panel header

        1 x front panel audio header

        1 x S/PDIF Out header

        1 x USB 3.0/2.0 header

        3 x USB 2.0/1.1 headers

        1 x serial port header

        1 x parallel port header

        1 x Clear CMOS jumper

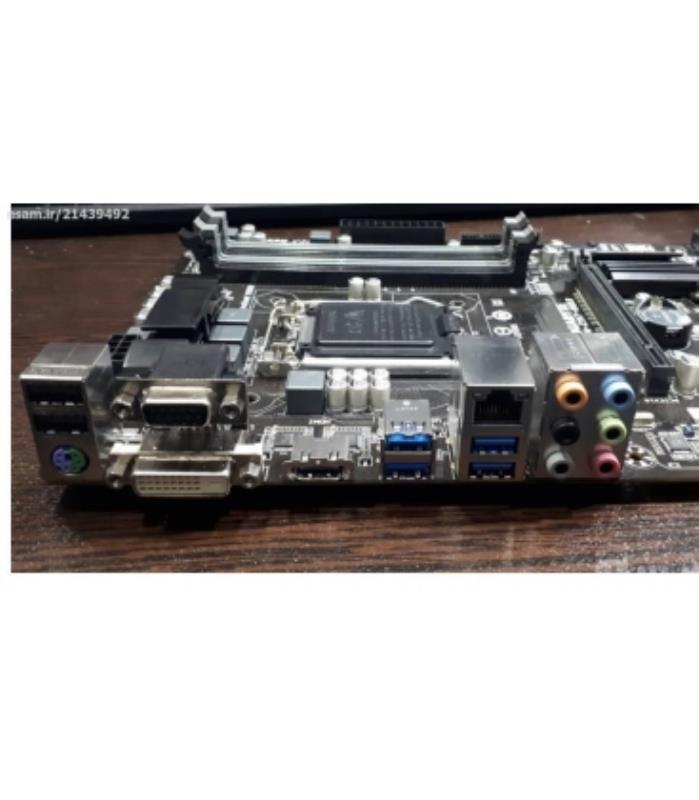

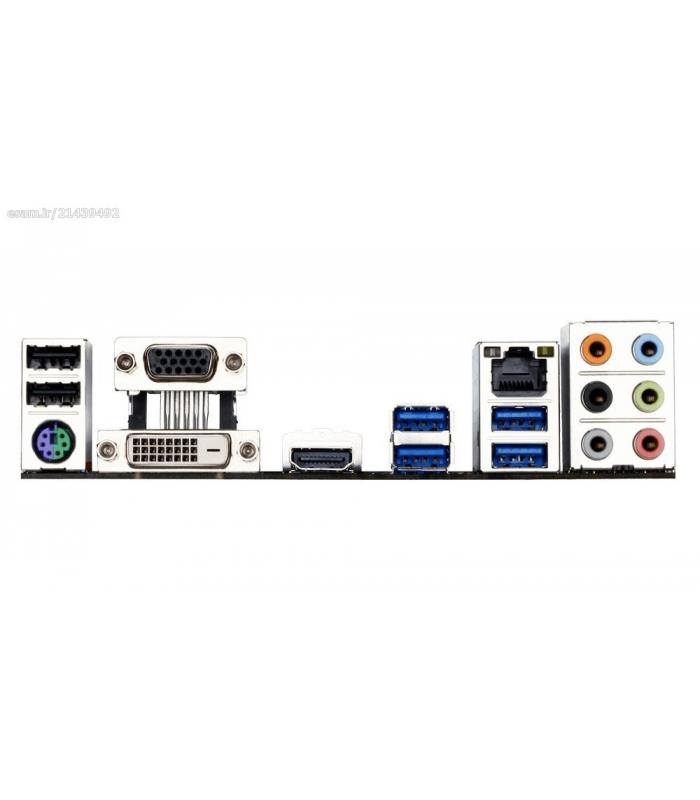

    Back Panel Connectors

        1 x PS/2 keyboard/mouse port

        1 x D-Sub port

        1 x DVI-D port

        1 x HDMI port

        4 x USB 3.0/2.0 ports

        2 x USB 2.0/1.1 ports

        1 x RJ-45 port

        6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

    I/O Controller

        iTE® I/O Controller Chip

    H/W Monitoring

        System voltage detection

        CPU/System temperature detection

        CPU/System fan speed detection

        CPU overheating warning

        CPU/System fan fail warning

        CPU/System fan speed control

        * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

        2 x 64 Mbit flash

        Use of licensed AMI UEFI BIOS

        Support for DualBIOS

        PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Unique Features

        Support for APP Center

        * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.

        esamBIOS

        EasyTune

        EZ Setup

        Fast Boot

        ON/OFF Charge

        Smart TimeLock

        Smart Recovery 2

        System Information Viewer

        USB Blocker

        Support for Q-Flash

        Support for Smart Switch

        Support for Xpress Install

    Bundled Software

        Norton® Internet Security (OEM version)

        Intel® Rapid Start Technology

        Intel® Smart Connect Technology

        Intel® Smart Response Technology

    Operating System

        Support for Windows 10/8.1/8/7

    Form Factor

        ATX Form Factor 30.5cm x 19.0cm
