GIGABYTE GA-H110-S2PH

عصر جدید

۱۱۲ محصول

(۲)

تهران، تهران

فعالیت از ۱۴۰۰/۰۳/۳۰

محصولات درباره

دست دوم

دیجیتال و الکترونیک لپ تاپ و کامپیوتر قطعات و تجهیزات پردازنده

(۰)

هزینه ارسال: برعهده خریدار

۲,۳۰۰,۰۰۰ تومان

۱
۲
۳
۴
۵
۶
۷
۸
۹
۱۰
بیشتر...

توضیحات

نظرات (۰)

توضیحات تکمیلی محصول

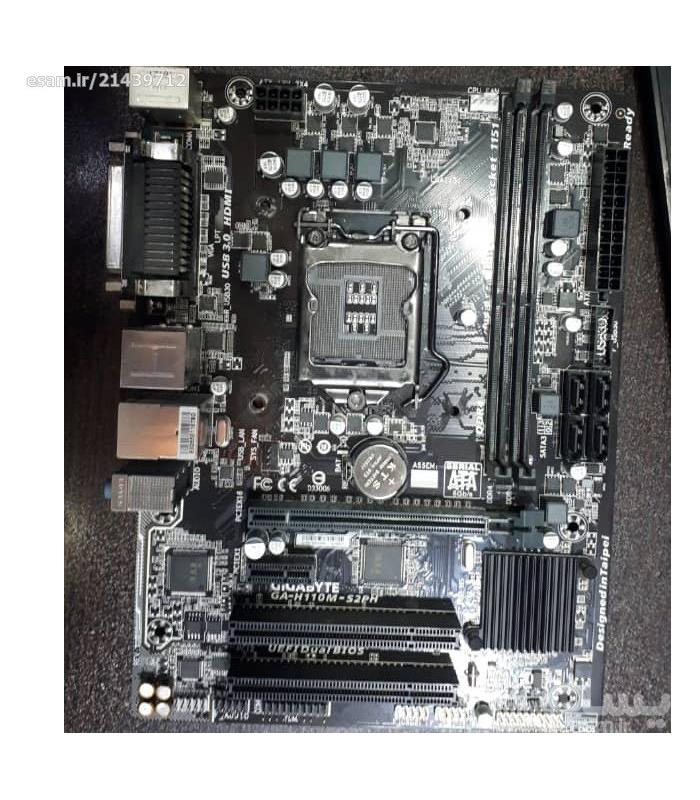

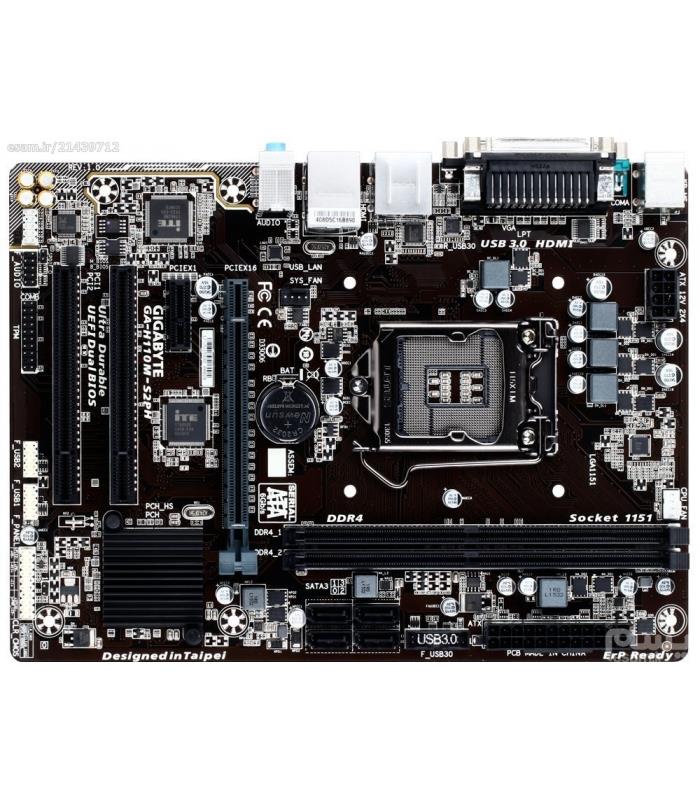

GIGABYTE GA-H110-S2PH 1151 HDMI VGA PARALEL COM USB3 PS2 LAN

CPU

Support for 7th/6th Generation Intel® Core i7 processors/Intel® Core i5 processors/Intel® Core i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package

* For 7th Generation Intel® Core processors support need to update the latest BIOS.

L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

Intel® H110 Express Chipset

Memory

2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR4 2400/2133 MHz memory modules

Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor - Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200esam60 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160esam24 Hz

* Support for HDMI 1.4 version.

Maximum shared memory of 1024 MB

Audio

Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slots conform to PCI Express 3.0 standard.)

1 x PCI Express x1 slot

(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)

2 x PCI slots

Storage Interface

Chipset:

4 x SATA 6Gb/s connectors

USB

Chipset:

4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.0/2.0 header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x Trusted Platform Module (TPM) header

1 x Clear CMOS jumper

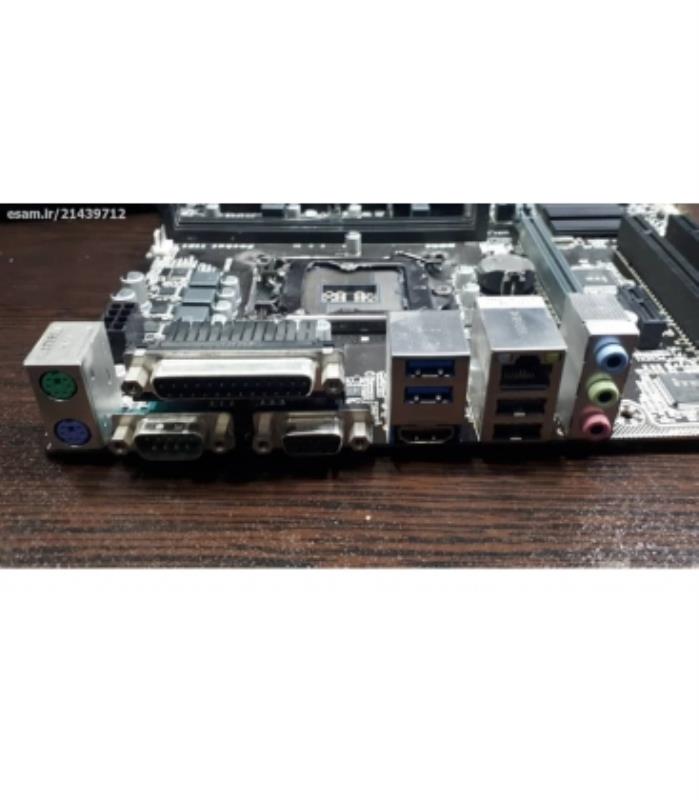

Back Panel Connectors

1 x PS/2 mouse port

1 x PS/2 Keyboard port

1 x D-Sub port

1 x parallel port

1 x serial port

1 x HDMI port

2 x USB 3.0/2.0 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU/System overheating warning

CPU/System fan fail warning

CPU/System fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

2 x 64 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center

* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.

3D OSD

esamBIOS

AutoGreen

Cloud Station

EasyTune

Fast Boot

Smart TimeLock

Smart Keyboard

Smart Backup

System Information Viewer

USB Blocker

Support for Q-Flash
