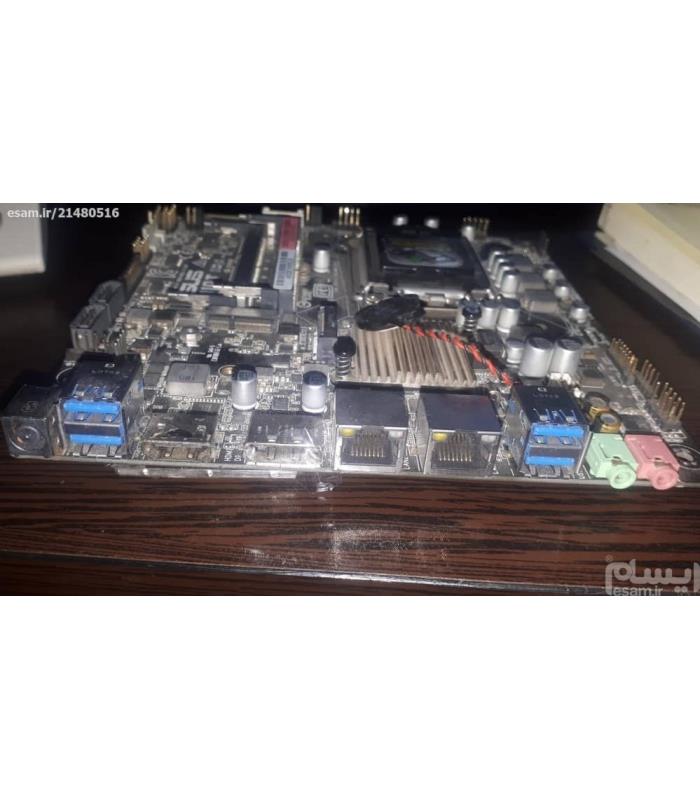

ASUS H110T 1151 M.2 WIFI HDMI DP++ USB3 LANX2

CPU

Intel® for 7th/6th Generation Core i7/Core i5/Core i3/Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

* Refer to www.asus.com for CPU support list

Chipset

Intel® H110

Memory

2 x SO-DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory

Supports Intel® Extreme Memory Profile (XMP)

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.

** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.

Graphic

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/LVDS/DisplayPort ports

- Supports HDMI with max. resolution 4096  x 2160  esam 24 Hz / 2560  x 1600  esam 60 Hz

- Supports LVDS with max. resolution 1920  x 1200  esam 60  Hz

- Supports DisplayPort with max. resolution 4096  x 2304  esam 60  Hz

Maximum shared memory of 1024  MB (for iGPU exclusively)

Supports up to 2  displays simultaneously

Storage

Intel® H110 chipset :

1 x M.2 Socket 3, with M key, type 2242/2260 storage devices support (both SATA & PCIE mode)

2 x SATA 6Gb/s port(s)

LAN

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Intel® I219V, 1 x Gigabit LAN

Audio

Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *1

- Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

USB Ports

Intel® H110 chipset :

4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)

Intel® H110 chipset :

5 x USB 2.0/1.1 port(s) (5 at mid-board)

Special Features

ASUS 5X Protection II :

- ASUS LANGuard - 2.5X higher surge tolerance

- ASUS Overvoltage Protection - World-class circuit-protecting power design

- ASUS DIGI+ VRM - 3  Phase digital power design

- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits

- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger

- Mobo Connect

- PC Cleaner

ASUS Quiet Thermal Solution :

- ASUS Fan Xpert

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

- Push Notice

100% All High-quality Conductive Polymer Capacitors

Media Streamer

Operating System Support

Windows® 10

Windows® 8.1

Windows® 7 *2

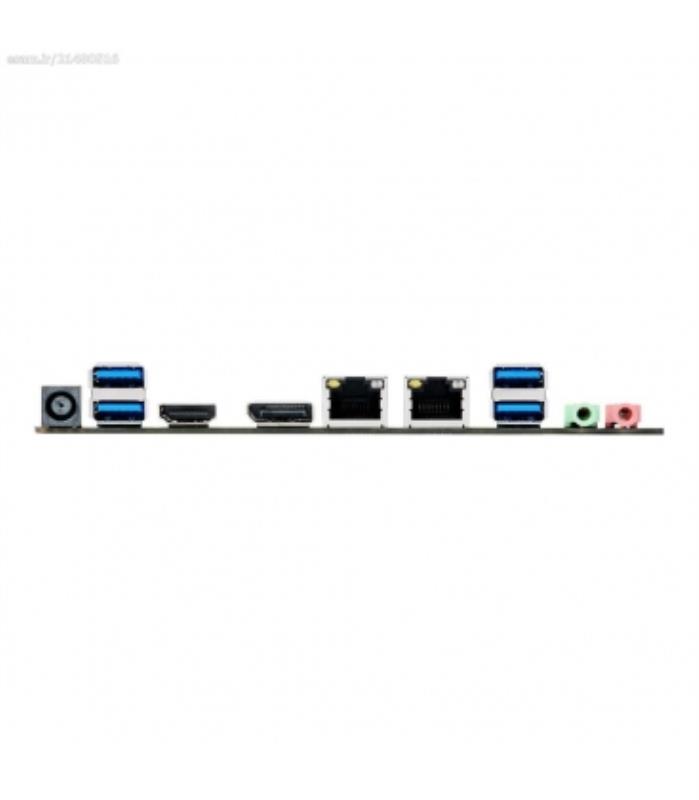

Back I/O Ports

1 x DisplayPort

1 x HDMI

2 x LAN (RJ45) port(s)

4 x USB 3.2 Gen 1 (blue)

2 x Audio jack(s)

1 x DC power connector(s)

Internal I/O Ports

1 x CPU Fan connector(s)

1 x Chassis Fan connector(s) ()

3 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)

1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode)

1 x COM port(s) connector(s)

2 x SATA 6Gb/s connector(s)

1 x SATA power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Chassis Intrusion connector(s)

1 x Clear CMOS jumper(s)

1 x 2-pin internal DC power connector

1 x Stereo speaker connector

1 x DMIC header

1 x Backlight inverter voltage selection header

1 x FPD brightness header

1 x Panel voltage selection header

1 x Panel off header

1 x LVDS connector(s)

1 x 14-1 pin TPM connector

1 x System panel connector

1 x M.2 Socket 1 with E key, type 2230 for Wi-Fi/BT devices support or PCIE/USB mode

Accessories

User´s manual

I/O Shield

Thin Mini ITX I/O Shield

1 x SATA power cable

2 x SATA 6Gb/s cable(s)

2 x M.2 Screw Package

1 x Supporting DVD

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM 2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3,CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function,F6 Qfan Control

Manageability

WfM 2.0, DMI 3.0, WOL by PME

Support Disc

Drivers

ASUS Utilities

ASUS EZ Update

Anti-virus software (OEM version)

Form Factor

Thin Mini ITX Form Factor

6.7  inch x 6.7  inch ( 17  cm x 17  cm )
